Biomaterials Characterization for Orthopedic Orthoses: a Systematic Review

De Azevedo Cunha J; Carneiro MRA; De Souza KCL; Santos Júnior FFU; Ceccatto VM; De Azevedo Cunha J; Carneiro MRA; De Souza KCL; Santos Júnior FFU; Ceccatto VM

Open Access

Review article

Max Screen

Biomaterials Characterization for Orthopedic Orthoses: a Systematic Review

De Azevedo Cunha J

Received Date: December 11, 2018 Accepted Date: February 13, 2019 Published Date: February 15, 2019

Copyright: © 2019 De Souza KCL. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Related article at Pubmed, Google Scholar

Abstract
Full Text
References
Pdf
Tables & Figures

Abstract

The term biomaterial is used for materials used in medical implants, extracorporeal and disposable devices, and must have compatible biological, physical, chemical and mechanical characteristics for use in humans. Objective: to identify and characterize the biomaterials used for the preparation of orthopedic orthoses. Methods: Systematic review, conducted through the following databases: Google Scholar, PubMed, Bireme, Lilacs, Embase, CINAHL and Science Direct. Results: We selected 8 studies that indicated a variety of biomaterials used for the manufacture of orthopedic orthoses, in addition to characterizing the respective materials regarding their physical and chemical qualities. It was observed that the polymers were the most used biomaterials for the preparation of orthopedic orthoses, with a wide variation in their physical and chemical characteristics. Conclusion: Orthotics made from biomaterials has been shown to be effective for orthopedic treatment, often reducing cost and favoring new biomedical technologies.

Keywords: Orthotic; Orthopedic; Materials

Introduction

Osteoarticular diseases are causes of a serious clinical and public health problem with an evident social and economic impacts, to such an extent that the World Health Organization declares the last years as the "Bone and Joint Decade". Reconstruction and restoration of locomotor injuries and function restoration assume an unequaled magnitude in a society in the midst of globalization and, therefore, more demanding, desirous of making the most of the social labor potential of a population with an increasing life expectancy [1]. In the 1990s, in Brazil, the area of biomaterials development became relevant in scientific and technological research activities. In recent years it has been a priority in development policies in all spheres of government, as well as protagonist in national and international industrial technological innovation [2]. Biomaterials are generally differentiated from medicinal products because they do not achieve their main therapeutic objective through a chemical effect within the organism, wich means, without the need for metabolism in the organism1. The term biomaterial is used for materials used in medical implants, extracorporeal and disposable devices, and must have biological, physical, chemical and mechanical characteristics compatible with the use in humans [3,4]. As for the type, they are classified in metals, ceramics, polymers and natural materials. Its application is in the areas of orthopedics, dentistry, cardiovascular, neurology, rheumatology, among others [5]. Within orthopedic rehabilitation, prostheses and orthotics are great examples of the application of these materials. A prosthesis is defined as a device that substitutes the limb partially or totally [6]. Orthoses have as function the biomechanical support of the segment, correction of deformities, seeking as well, the comfort for the individual who is wearing the device [7]. In the field of rheumatology orthotics are widely used to aid in the treatment of diseases, especially those involving lower limbs. Commonly indicated dysfunctions for the use of orthoses are: Rheumatoid Arthritis, Plantar Fasciitis, Hallux Valgus, Posterior Tibial Tendon Dysfunction, among others [8]. Therefore, the objective of this work is to identify and characterize the biomaterials used for the preparation of orthopedic orthoses through a systematic review.

Methodology

Two independent reviewers conducted research and selected eligible studies in the databases: Google Scholar, PubMed, Bireme, Lilacs, Embase, CINAHL and Science Direct between June and July 2016, with the following descriptors: “Órtese Ortopédica”, “Biomateriais”, “Palmilhas”, “Características químicas” e/ou “características físicas polímeros ou fibra de palmeira”, “biomaterials” AND “orthopedic orthosis” AND “insole”, “chemical characteristics” AND/OR “physical characteristics” AND “polymers”, “chemical characteristics” AND/OR “physical characteristics” AND “palm fiber”. Orthopedic Orthopedic studies containing at least one biomaterial were considered eligible. Studies involving other types of orthosis were excluded. There was no language restriction. The two reviewers performed a pre-selection of studies by title and summary using eligibility criteria. Subsequently, a complete reading of potentially eligible articles was carried out to confirm their inclusion. It was pre-defined that disagreements between the two reviewers were refereed by a third reviewer at a consensus meeting. The data extraction was performed in a standardized way, through a pre-established data extraction form. Data extracted were: title, authors, year of publication, database, study objective, methodology, biomaterial type and conclusion. After the article table was constructed, a new search was made for the physical and chemical characterization of the biomaterials found in the selected studies and, afterwards, a consultation was made for the analysis of the patents of insoles existing in national collection. The search was conducted at the patent office Instituto Nacional da Propriedade Nacional (INPI). INPI is a Brazilian federal authority responsible for stimulating innovation and competitiveness in the service of technological and economic development in Brazil, linked to the Ministry of Development, Industry and Foreign Trade. As a search strategy we used the keyword "insole" with the Índice de Desenvolvimento de Patentes (IPD) "A43B" and included only those that had their manufacturing material properly described.

Results

A total of 101 studies were found, of which only 8 were included through the eligibility criteria (Flowchart 1).

Of the 8 selected studies, 9 types of biomaterials were identified. The characterization of the included studies is presented in (Table 1), as well as the characterization of the biomaterials in (Table 2).

After the identification of the physical and chemical characteristics of the biomaterials identified, the search of patents in INPI database using the term "insole" presente in (Table 3).

Discussion

Studies indicate that for the preparation of orthoses the chosen biomaterial is, primarily, the polymer. The origin of the polymers used for the manufacture of the orthoses was from its synthetic form until the extraction of the organic material. The advantages of this material are its great price-quality ratio, lightness, strength and diversity as to its physical and chemical characteristics. Its application to the production of orthopedic orthoses was from foams to structures with higher stiffness contente [10,12,23]. Insole were developed with the objective of reducing foot pressure and reducing pain and all achieved significant results [10,13,25]. Reis, Fleury, Rocha (2010) produced a "smart" preventive insole with pressure sensors for diabetic patients. The result was the creation of a natural latex insole of high quality and low cost [10]. When performing an experiment with patients with Rheumatoid Arthritis with foot involvement using an EVA brace, it was possible to assume that there was a significant decrease in plantar pressure points and consequently pain [36]. The practice of heating insoles to improve their contact with the foot has reduced the pressure leading to a decrease in the properties of the materials, which may decrease their clinical effectiveness [11]. The use of closed cell reticulated polyethylene foam is able to reduce pressure throughout the foot without losing the properties of the materials used [11]. Corroborating with the findings of the studies, the main biomaterial used to make the patented insoles was the polymer. The most frequent proposals of these orthoses are the promotion of impact cushioning, sweat absorption and decrease of pressure peaks in the plantar region.

Conclusion

The evidences show that the polymers were the most used biomaterials for the preparation of orthopedic orthoses, with a wide variation in their physical and chemical characteristics. Orthotics made with biomaterials have been shown to be effective within the proposed objectives, in addition to often reducing the cost and enabling new technologies for the studied groups.

1Judas F, Figueiredo H, Dias R (2009) Biomateriais em cirurgia ortopédica reconstrutiva. Faculdade de Medicina da Universidade de Coimbra. University Clinic of Orthopedics of HUC.

2Borelli V (2011) Pesquisa e desenvolvimento de biomateriais: estudos das inter-relações científicas, tecnológicas e normativas. Master's Dissertation.

3Dee KC, Puleo DA, Bizios R (2002) An Introduction to Tissue-Biomaterial Interactions. Hoboken, John Wiley & Sons, Inc 248.

4Oréfice RL (2005) Biomateriais e Biocompatibilidade. In: F. ORÉFICE (org.). Uveíte: Clínica e Cirúrgica: Texto & Atlas. Rio de Janeiro: Medical Culture.

5 Pires ALR, Moraes AM (2015) Biomateriais: Tipos, Aplicações e Mercado. Quim Nova 38: 957-71.

6 Bertol LS, Escobar CF, Kindlein Júnior W, Santos LA, Medeiros EB, et al. (2010) Projeto, fabricação e avaliação de implantes craniofaciais personalizados: proposta de utilização de materiais combinados. Rev Bras Eng Biom 26: 79-89.

7 Ginestra PS, Ceretti E, Fiorentino A (2016) Potential of modeling and simulations of bioengineered devices: Endoprostheses, prostheses and orthoses. Proc Inst Mech Eng H 230: 607-38.

8 Milner S (2010) Common disorders of the foot and ankle. Surgery 28: 514-7.

9 Chen B, Ma H, Qin LY, Gao F, Chan KM, et al. (2016) Recent developments and challenges of lower extremity exoskeletons. J Orthopaedic Translation 5: 26-37.

10 Reis MC, Fleury SSR, Rocha AF (2010) Desenvolvimento de uma palmilha para pé diabético com controle de pressão. VI National Congress of Mechanical Engineering.

11 Brodsky JW, Brajtbord J, Coleman SC, Raut S, Polo FE (2012) Effect of Heating on the Mechanical Properties of Insole Materials. Foot Ankle Int 33: 772-8.

12 Tonga JWK, Ng EYK (2010) Preliminary investigation on the reduction of plantar loading pressure with different insole materials (SRP – Slow Recovery Poron®,P – Poron®, PPF – Poron® + Plastazote, firm and PPS – Poron® + Plastazote, soft). Foot 20: 1-6.

13 Ossami NL, Miosso CJ, Fleury SR (2014) Implementação e Avaliação de um Sistema de Classificação Automática de Alterações Podais Utilizando Palmilhas de Látex com Sensores de Pressão e Acelerômetros, Baseado em Redes Neurais Artificiais. Pan American Healthcare Intercâmbios.

14 Mulinari DR, Vidal AC (2014) Preparação e caracterização de biocompósitos de poliuretano reforçados com fibras da palmeira para aplicação em palmilhas. Capa 1: 89-93.

15 Seligman DA, Dawson DR (2003) Customized Heel Pads and Soft Orthotics to Treat Heel Pain and Plantar Fasciitis. Arch Phys Med Rehabil 84: 1564-67.

16 Meng Q, Hu J, Zhu Y (2008) Properties of shape memory polyurethane used as a low-temperature thermoplastic biomedical orthotic material: influence of hard segment content. J Biomater Sci Polymer Ed 19: 1437-54.

17 Deng J, Tanner JE, Mukai D, Hamilton H, Dolan C (2015) Durability performance of carbon fiber-reinforced polymer in repair/srengthening of concrete beams. ACI Mater J 112: 247-58.

18 Carneiro LAV, Teixeira AMAJ (2008) Propriedades e características dos materiais compósitos poliméricos aplicados na Engenharia de Construçã o. Rev Militar de Tecnologia 2008: 54-66.

19 Reis MDC, Soares FA, Rocha AF, Carvalho JL, Rodrigues SS (2010) Insole with pressure control and tissue neoformation induction systems for diabetic foot. 32nd Annual International Conference of the IEEE 2010: 5748-51.

20 Grave HH, Bayer AG, Leverkusen AG (1993) Ullmanns Encyclopedia of Industrial Chemistry. (5th edn) Polym Int.

21 Hasma H (1992) Proteins of natural rubber latex concentrate. Journal of Natural Rubber Research 12: 21-32.

22 Pierce BF, Brown AH, Sheares VV (2008) Thermoplastic poly (ester urethane)s with novel soft segments. Macromolecules 41: 3866-77.

23 Rodrigues LP (2013) Aplicações de biomateriais em ortopedia. Estudos Tecnológicos em Engenharia 9: 63-76.

24 Mishra AK, Chattopadhyay S, Rajamohanan PR, Nando GB (2010) Effect of tethering on the structure-property relationship of TPU-dual modified Laponite clay nanocomposites prepared by ex-situ and in-situ techniques. Polymer 52: 1071-83.

25 Santavirta S, Konttinen YT, Lappal-ainen R, Antilla A, Goodman SB, et al. (1998) Materials in total joint replacement. Current Orthopaedics 12: 51-7.

26 Pires F, Ferreira Q, Rodrigues CA, Morgado J, Ferreira FC (2015) Neural stem cell differentiation by electrical stimulation using a cross-linked PEDOT substrate: Expanding the use of biocompatible conjugated conductive polymers for neural tissue engineering. Biochim Biophys Acta 1850: 1158-68.

27 Shejaa D, Tay BK, Nung LN (2004) Feasibility of diamond-like carbon coatings for orthopaedic applications. Diamond and Related Materials 13: 184-90.

28 Araújo GAB, Alvim RC, Alvim RAA (2011) Uso de resíduos industriais de borracha tipo "EVA" para fabricaçã o de produtos da construçã o civil. 17º Seminário de Iniciaçã o Científica e 11º Semana de Pesquisa e Pós-Graduaçã o. Ilhéus: UESC.

29 Santiago EQR (2008) Utilizaçã o de Agregados de EVA e RCD para obtenção de concretos leves. Feira de Santana. Feira de Santa, Brazil.

30 Brulé B, Bourlot F (1993) Choix dún bitume pour liant modifié EVA Revue Générale des routes et des aerodromes Dossier 1993: 46-8.

31 Ramakrishna S; Mayer J, Winterman-Tel E, Leong KW (2001) Biomedical Ap-plications of polymer-composite materials: a review. Compos Sci Technol 61:1189-224.

32 Padilha AF (1997) Materiais de Engenharia: Microstrutura e Propriedades. São Paulo: Hemus.

33 Soares MS (2012) Síntese e caracterização de espumas de poliuretano para imobilização de células íntegras e aplicação na síntese de biodiesel. Sao Paulo, Brazil.

34 Drew JA (1986) inventor. Production of insoles. US patente US4563787 (A)-1986-01-14. 14 Disponível em.

35 Fermino MH, Gonçalves RS, Silveira JRP, Battistin A, Trevisan M, et al. (2014) Fibra de palmeira como substrato para hortaliças. Hortic Bras 32: 404-8.

36 Klempner D, Frisch KC (1991) Handbook of polymeric foams and foam technology. New York: Hanser Publishers.

Journal of Materials Science and Nanotechnology

Tables at a glance

Table 1

Table 2

Table 3

Figures at a glance

Flow chart 1

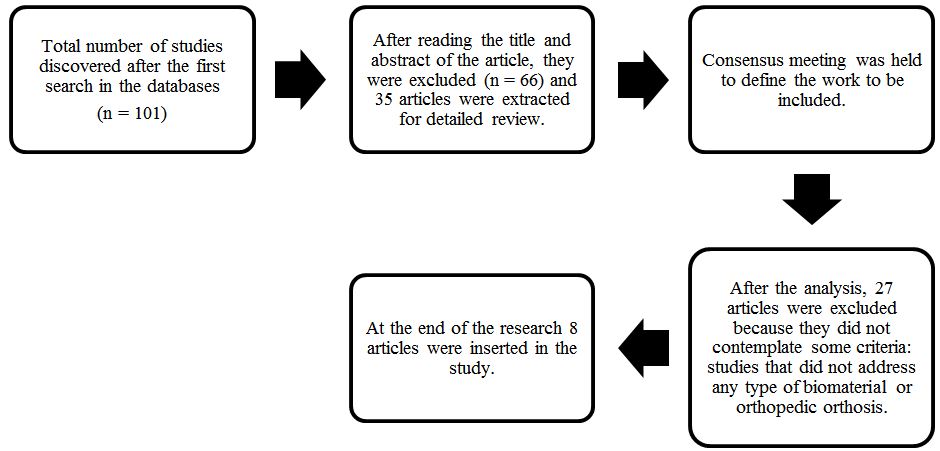

Flow chart : Eligibility Criteria
